Mini carrier board – PDB Combo – Pixhawk Cube

75,00

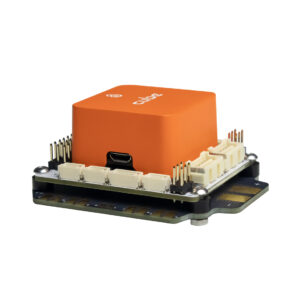

The Mini carrier Board is one of the best ways to integrate a pixhawk 2.1 cube into a drone. It provides maximum connectivity in a small size. Now accompanied by a Mini PDB, this combo is ideal for installing a cube in any drone, and simplifies the installation of the autopilot, even in small drones. BETA version: V1.2

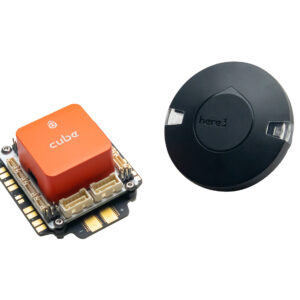

(Pixhawk 2.1 Cube et GPS Here not included)

In stock

    • 2.6 €
    • 2.99 €
    • 3.45 €

The mini carrier board incorporates a ‘ power selection module ‘ (PSM with a value of €40). This module provides redundancy for the Pixhawk 2.1 cube power supplies. If one of the power supplies fails, the PSM switches to the second power supply without interruption of the current.

A mini PDB that can support up to 180A now comes with the mini carrier Board. This Ultra-Compact Setup allows easy and clean mounting on all frame types.

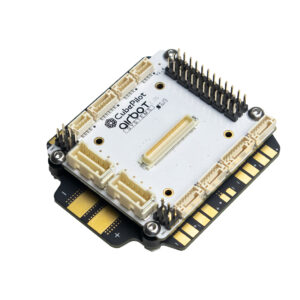

The mini carrier Board Airbot has been specially designed to allow the installation of a Pixhawk 2.1 cube on any drone. It offers complete connectivity in a reduced format:
-2 power ports
-RC input (PPM/S. BUS + 5V)
-Spectrum input + 3.3 v
-Serial ports: 1/2/3/4/5
– I2C + CAN
– GPS1 + GPS2
-PWM signal distribution for motors (up to 8)
-ect… (see user manual)

TECHNICAL SPECIFICATIONS:

Mini carrier Board:
Dimensions : 50.5*57.5mm (1.98*2.26 inch)
Height with cube: 24.65 mm (EXCL. PSM + 2.75 mm approx)
Weight: 19gr (0.041 lb) (incl. connectors and PSM)

Mini Power Distribution Board :
Dimensions : 60.5*69mm (2.36*2.71 inch)
Weight: 21gr (0.046 lb)
