Herelink AIR Unit Antenna upgrade kit

30,00

This antenna kit allows the upgrade of the original Herelink antennas. These 2.4GHz antennas have similar performances than the original ones, but are easiest to integrate on a drone (Air unit not included)

In stock

Category: Tags:

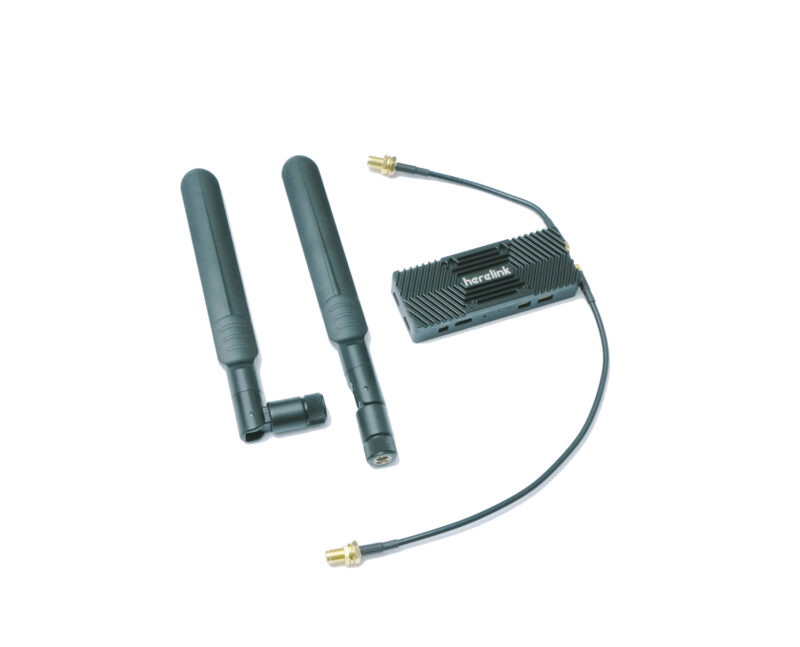

The set of antennas for Herelink allows you to replace the original antennas.
Two adapter cables are provided, and allow panel mounting of the antennas (vertically or horizontally).
The antennas are foldable at 90deg and their SMA connection allows quick and easy dismantling. Their performances are pretty similar to the original ones

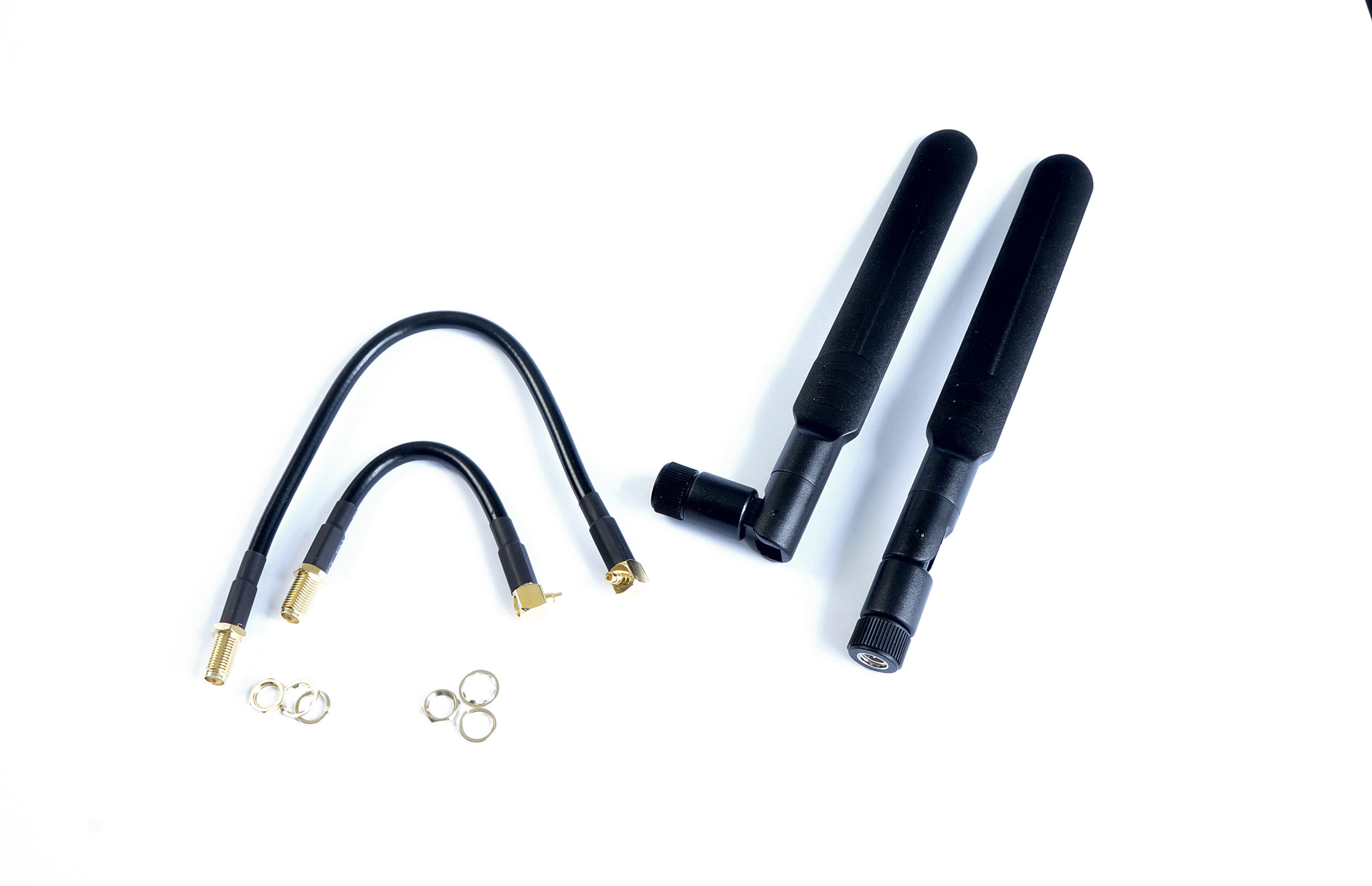

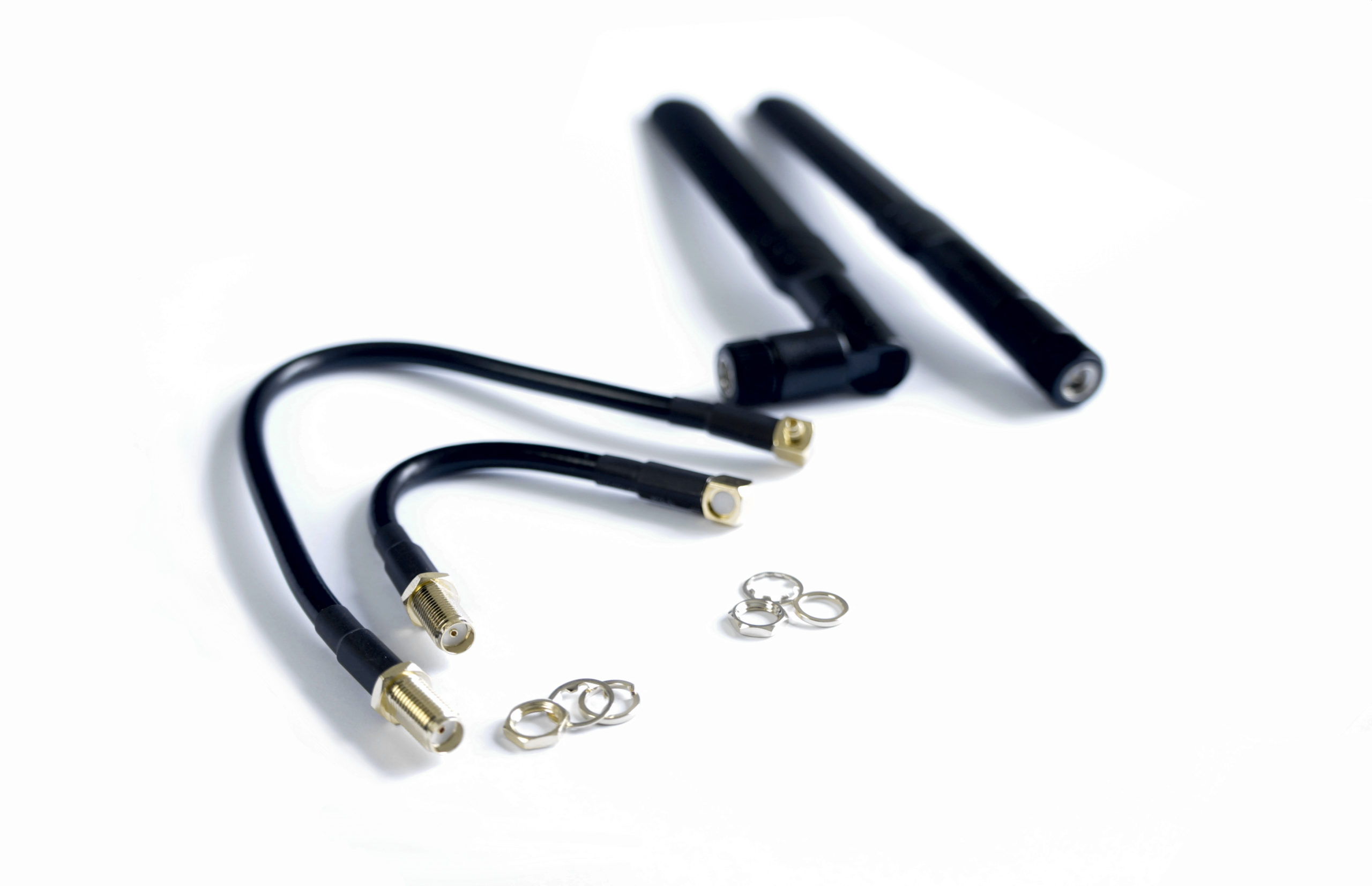

KIT CONTENT :

  • 2.4ghz Antenna (x2)
  • 10cm Adapter (x1)
  • 20cm adapter (x1)
  • Nuts and washers set

Kit weight : 51g

TECHNICAL SPECIFICATIONS :

  • Frequency : 2.4ghz
  • Connector : SMA
  • Lenght : 160mm ; width : 20mm (at largest)
  • Gain : 5dBi max
  • Impedance : 50 Ohms
  • Type : Omnidirectionnal
  • Polarisation : vertical
  • VSWR : <1.5
